MFJ HF/VHF/UHF Antenna Analyzer

1.5-185* MHz plus 220 and 300-490MHz

All the RF-diagnostic functions you need with easy-to-use MFJ-266C digital analyzer!

The MFJ-266C covers HF, VHF, plus UHFamateur and commercial frequencies with digital precision.
It also displays SWR, Complex Impedance, and Impedance magnitude simultaneously -- all on the same
easy-to-read LCD screen. Use it to measure Capacitance, Inductance, Field Strength, Frequency, plus
generate test signals. You can also fine tune stubs, analyze coax, test baluns and RF transformers, and
perform many other important RF-related tasks around the shack or on the road!

When it comes to simplicity and convenience, MFJ-266C is a winner. Not only is it easy-to-use, but fits comfortably in one hand for on-the-fly measurements on the bench or in the field. Here`s the rundown of what this compact powerhouse can deliver:

Frequency Coverage
The MFJ-266C covers all bases -- 160 through 6 Meters, the FM broadcast band, Airband, 2 Meters, 220 MHz, 70 cm, plus VHF/UHF commercial 2-way frequencies:
Band A: 1.5 to 2.7 MHz
Band B: 2.5 to 4.8 MHz
Band C: 4.6 to 9.6 MHz
Band D: 8.5 to 18.7 MHz
Band E: 17.3 to 39 MHz
Band F: 33.7 to 65 MHz (gap*)
Band V: 105 to 230 MHz 220 MHz!
Band U: 300-490 MHz

The velvet-smooth 10:1 vernier drive and solid state varicap makes fine tuning a breeze, Built-in dial lock prevents accidental detuning making measurements. Switched backlighting LCD screen is easy-to-read in any light.

SWR, Impedance Magnitude, and Complex Impedance
In SWR Mode, MFJ-266C reads SWR 1:1 to 9.9:1, Impedance Magnitude 10-500 Ohms and Complex Impedance (resistance
and reactance). Best of all, it displays all three parameters simultaneously and operating frequency with one quick glance. No other low cost handheld analyzer offers this! (Note: Z-mag and R+jX not displayed on UHF).

Capacitance and Inductance
Find values for unknown capacitance in pF or unknown inductance in uH quickly. Measurements are made at RF frequencies
rather than at the low audio frequencies used by many handheld L/C meters.

Frequency Measurement, Field Strength Readings
In Frequency-Counter Mode, MFJ-266C becomes an accurate 500-MHz counter with a choice of 1-kHz or 100-Hz resolution. The
counter mode also features a high-resolution digital field-strength meter for measuring the relative intensity of incoming signals. Together, these functions are extremely useful for checking the operation of oscillators,
transmitters, as well as assessing the strength of radiated signals from antenna arrays.

Built-in Interference Detection
In Frequency-Counter Mode, MFJ tracks down powerful local signals that disrupt accurate SWR measurements. When picked
up by an antenna under test, these signals compete with MFJ-266C`s internally generated test signal to make SWR readings appear artificially high. Handheld antenna bridges are subject to additive interference, but only MFJ detects the offending signal, displays severity, and identifies frequency!

Powerful Signal Source
MFJ-266C also functions as a tunable signal source, supplying about 2 Volts peak-to-peak across the entire tuning range. You can use this signal to drive mixers, low-power amplifier stages, or filters, and use it as a source for checking antenna patterns on a range. Add a step attenuator, (MFJ-762) and it becomes a low-level signal source for testing receivers and pre-amps.

Take it With You!
You`ll love the compact size and bantam weight of MFJ-266C when perched on a tower. Also, push-button band switching lets you toggle across the spectrum with ease when tucked into cramped spaces.

User-Friendly Layout
MFJ-266C is ergonomic, antenna N-connector positioned on top of the case and everything else arranged and clearly marked on front panel -- right in front of your eyes.
MFJ-266C’s operating manual was professionally written and illustrated to help you understand and master every function quickly. It also includes a guide for ensuring accurate results and getting the most from the unit`s advanced features. In the back, you`ll find a one-page "Quick Guide" that reviews all controls and functions.

Many Instruments in One
Having MFJ-266C is like owning several pieces of test equipment. You get a powerful wide-range signal source, Inductance/Capacitance meter, network analyzer, RF field-strength meter and a 500-MHz frequency counter all-in-one small package.

Bullet Proof Construction
Features like the rugged aluminum case, solid-state band switching, robust internal construction, and solid-state LCD display ensure that bumps and drops won`t faze the unit in the least. Expect it to hold calibration and reliable service for years to come.

Vital Statistics
Uses eight internal AA alkaline batteries or optional 12VDC/110 VAC adapter with optional MFJ-1312D
Has built-in Li-ion battery charger.
Use optional MFJ-18650. Powerful 3.7V, 3000 mAh Li-on battery.

Compact 3 3/4W x 6 1/2H x 2 3/4D inches.

Weighs 1.32 lbs. Draws 30-mA in counter and 140-mA in analyzer modes.

Includes N-to-SO-239 adaptor.

The MFJ-971 is a compact 200-Watt portable tuner MFJ QRP transceivers. The MFJ-971 is also a perfect mate for any of todays ultra-compact SSB radios. It provides a convenient cross-needle type SWR/Wattmeter and features a special user-selectable 6-Watt range for QRP operation. The T-match tuner covers 1.8-30 MHz and tunes almost any coax, wire, or balanced-feed type antenna (a 4:1 toroid balun is built in for balanced line). It measures a tiny 6 x 6 x 2½ inches!

Why settle for a mere 300 Watt antenna tuner when a few extra dollars lets you add real power when youre ready? The MFJ-962D lets you use your barefoot rig now. When youre ready . . you can add a powerhouse linear amplifier at no additional cost. The compact MFJ-962D handles 1500 Watts PEP SSB amplifier input power (800 Watts PEP SSB amplifier output power). Its perfect for Ameritrons best selling 800 Watt AL-811H or 600 Watt AL-811 amplifiers!

MFJ-962D is new and improved! New features include MFJs AirCore Roller Inductor, new aluminum-skirted knob set including a weighted deluxe spinner knob, ultra compact size (10.75 x 4 x 10.875 inches) and scratch-proof multi-colored Lexan front panel. Two transmitting tuning capacitors and MFJs exclusive AirCore roller inductor gives you precise control to get your SWR down to an absolute minimum.

You get an extremely wide matching range from 1.8 to 30 MHz continuously including MARS and WARC bands.MFJs AirCore roller inductor has an air core that cant burn up. You get ultra high-Q, low loss and MFJs exclusive Self-Resonance Killer that eliminates damaging self-resonances.

MFJs lighted peak and average reading Cross-Needle SWR/Wattmeter makes tuning quick and easy. At one glance you can read SWR, forward and reflected power in two power ranges. Meter light uses 12 VDC or 110 VAC with MFJ-1312D. A 6-position ceramic antenna switch lets you select 2 coax lines (direct or through tuner), random wire and balanced lines. You get a heavy duty MFJ TrueCurrentBalun for balanced lines. High-voltage ceramic feedthru insulators let you operate high power into balanced feedlines.

MFJ-259C 530 KHz - 230 MHz SWR Analyzer
World’s most popular SWR analyzer is super easy-to-use



The famous MFJ-259C gives you a complete picture of your antenna’s performance. You can read your antenna’s SWR and Complex Impedance 530 KHz to 230 MHz continuously with no gaps.

You can read Complex Impedance as series resistance and reactance (R+jX) or as magnitude (Z) and phase (degrees).

Determine velocity factor, coax loss in dB, coax length and distance to a short/open.

Read SWR, return loss and reflection coefficient at any frequency simultaneously.

You can read inductance in uH and capacitance in pF at RF frequencies.

Large easy-to-read two line LCD screen and side-by-side analog meters clearly display your information.

Built-in frequency counter, Ni-MH/Ni-CD charger circuit, battery saver, low battery warning and smooth reduction drive tuning.

Super easy to use! Just set the bandswitch and tune the dial -- just like your transceiver. SWR and Complex Impedance are displayed instantly!

Here’s what you can do

Find your antenna’s true resonant frequency. Trim dipoles and verticals.

Adjust your Yagi, quad, loop and other antennas, change antenna spacing and height and watch SWR, resistance and reactance change instantly. You’ll know exactly what to do by simply watching the display.

Perfectly tune critical HF mobile antennas in seconds for super DX -- without subjecting your transceiver to high SWR.

Measure your antenna’s 2:1 SWR bandwidth on one band, or analyze multiband performance.

Check SWR outside the ham bands without violating FCC rules.

Take guesswork out of building and adjusting matching networks and baluns.

Accurately measure distance to short or open in failed coax. Measure length of a roll of coax, coax loss, velocity factor and impedance.

Measure inductance, capacitance. Troubleshoot and measure resonant frequency, Q of traps, stubs, transmission lines, chokes, tuned circuits, baluns.

Adjust your antenna tuner for a perfect 1:1 match without creating QRM.

MFJ-259C is a complete ham radio test station with frequency counter, RF signal generator, SWR/Resistance/Reactance/Coax Analyzer, Capacitance/Inductance Meter and much more!

Use 10 AA or Ni-MH batteries (not included) or 110 VAC with optional MFJ-1312D.

Compact 4W x 6 3/4H x 2D inches

Keeps your transceiver operating at full efficiency and performance by
eliminating low or marginal voltages in the mobile environment . . .

Today`s compact 100-watt HF transceivers are designed to operate from about 12-16 volts, with output signal distortion, output power problems, and transceiver reset often occurring when voltage drops below 12 volts.

In the mobile environment, low voltage is caused in two ways: First - even low
resistance DC wiring can result in a noticeable voltage drop. For a 100-watt transceiver with a 20-amp typical current requirement, just 1/10th of an ohm resistance in your DC cable and connectors results in a 2-volt drop! And second - when you turn your car off, the battery voltage drops from around 13.8
volts to close to 12 volts after a short period of time. Couple this with any voltage drop in the cables, and you have a problem.

The MFJ-4416 Super Battery Booster eliminates low voltage problems by boosting
input voltages as low as 9 volts up to the desired 13.8 volts at up to 25 amps peak with a typical efficiency of close to 90%.

It is compact at just 7 3/4W x 4H x 2 1/8D” and lightweight at 1.3 lbs. And the MFJ-4416 Super Battery Booster is designed to be rugged, reliable, and easy to
use.

MFJ-4416 includes Anderson PowerPoleTM connectors and high-current 5-way binding posts for both the DC input and regulated output. An internal 30-amp
input fuse protects the unit from excess output current demands.

There are also selectable limits on the minimum voltage that the unit will accept: 9-volts, 10-volts (default), and 11-volts. This protects you from over-discharging a battery and possibly damaging it. MFJ-4416 also includes output over-voltage crow-bar protection should regulation be lost.

Two additional features offer ways to increase efficiency even more! First, there is an RF sampling port which can be connected to your transceiver`s transmission line with an MFJ-7733 UHF-T connector. When this feature is enabled, the MFJ-4416 is bypassed unless RF is sensed so no regulator switching efficiency penalties are incurred during receive.

The second efficiency enhancement feature is a user-adjustable output voltage control which lets you set the output voltage anywhere between 12- and 13.8-volts. When setting the output at 12-volts, input voltages greater than 12V will pass through, but the efficiency of the regulator is higher. And lower input voltage means your transceiver will run cooler!

Typically save over 30 watts in heat dissipation during transmit, and even 3-4 watts during receive. So it can actually be good to let the voltage sag to 12 volts, then let the MFJ-4116 protect you from lower voltages.

More Hams use MFJ-949s than any other antenna tuner in the world! Why? Because the worlds leading antenna tuner has earned a worldwide reputation for being able to match just about anything.

Full 1.8-30MHz Operation
Custom designed inductor switch, 1000 volt tuning capacitors, Teflon insulation washers and proper L/C ratio gives you arc-free no worries operation with up to 300 Watts 1.8 to 30 MHz.

Tunes any Antenna
Tunes out SWR on dipoles, verticals, inverted vees, random wires, beams, mobile whips, shortwave receiving antennas.... Nearly anything! Use coax, random wire or balanced lines. Has heavy duty 4:1 balun.

Custom Inductor Switch
The inductor switch is the most likely component to burn up in any antenna tuner. MFJs inductor switch in the MFJ-949E was custom designed to withstand the extremely high RF voltages and currents that are developed in your tuner.

8 Position Super Antenna Switch
Lets you select two coax fed antennas, random wire/balanced line or built-in dummy load through your MFJ-949E or direct to your transceiver.

More hams use MFJ-949s than any other antenna tuner in the world!
Has MFJs full size 3 inch lighted Cross Needle Meter (not a puny "meter" you cant read). Lets you easily read SWR, true peak forward and average reflected power simultaneously on 300 Watt or 30 Watt ranges. Lamp has on/off switch, requires 12 VDC or 110 VAC with MFJ-1312D, $14.95

QRM-Free PreTune
MFJs QRM-Free PreTune lets you pre-tune your MFJ-949E off-the-air into its built-in dummy load! Makes tuning your actual antenna faster and easier.

Plus much more!
Full size built-in non-inductive 50 Ohm dummy load, scratch-proof Lexan multi-colored front panel, superior cabinet and construction and more!

The MFJ-929 IntelliTuner-Compact™ lets you automatically tune any coax fed or random wire antenna 1.8 - 30 MHz at full 200 Watts SSB/CW. It can match 6-1600 Ohms (SWR up to 32:1) - thats a 50% wider matching range at a higher power level than lesser competing products.

You get a digital SWR/Wattmeter with backlit LCD, antenna switch for 2 antennas, built-in radio interface and built-in internal BiasTee for remote tuner operation.

MFJs exclusive IntelliTune™, Adaptive Search™ and InstantRecall™ algorithms give you ultra-fast automatic tuning with over 20,000 VirtualAntenna™ Memories.

MFJ VirtualAntenna™ Memory

MFJ new VirtualAntenna™ Memory system gives you 4 antenna memory banks for each of 2 antenna connectors. You can select up to 4 antennas on each antenna connector. Each antenna has 2500 memories.

4 Times the Solutions!

MFJ-929 gives you 256 values each of capacitance and inductances for 131,072 matching solutions. Thats 4 times the 32,768 matching solutions of competing products with only 128 L/C values each!

Highly intelligent, ultra-fast tuning!

Don`t be fooled by competing products claiming fast search times -- if you have a quarter of the matching solutions, of course, it takes less time to finish but its not faster.

MFJ`s faster speed comes from advanced technology and software algorithms not from fewer matching solutions.

MFJ`s IntelliTuner-Compact™ actually measures complex impedance -- R and X --of your antenna, computes the L-network values needed and snaps in those components to give you an instant match.

If the load is out of measurement range, AdaptiveSearch™ determines the smaller sub-set from all solutions that can match a safe load -- and then searches only that subset -- others search through far more solutions.

Digital LCD SWR/Wattmeter

An easy-to-read, two-line, 16-character backlit LCD displays SWR, peak or average forward/reflected power, frequency, antenna 1 or 2, L/C tuner values, on/off indicators and other info. They are selected from easy-to-understand menus; not complex combinations of buttons you can`t remember.

A fast-response, high-resolution bargraph gives you an auto-ranging 20/200 Watt power meter. You get 60 segments each for forward and reflected power and 36 segments for SWR -- try that with an 8 segment bargraph that makes you change power ranges and doesn’t even give you reflected power!

You can read inductance and capacitance directly in uHy and pF. This turns you into an expert L-network designer! Match your load, read the resulting L/C values, then use them to build your fixed L-network.
Or, knowing the L/C values you can determine R and X of the load impedance.

StickyTune™ mode gives you one-hand tuning by locking the TUNE button; just transmit to tune regardless of SWR.


Has audio SWR meter and audio feed back. Competing products don`t. Built-in 50 MHz frequency counter. Its built-in radio interface lets you use a simple wire cable to compatible rigs. Others require a cable with expensive electronics. Binding post for random wire. Self-test. Highly efficient L-network. 10 Amp/1000V relays, RF duty silver mica capacitors.

6 ½" x 2 ¾" x 7 ½". 2.4 lbs. 12-15 VDC/ 1 Amp or 110 VAC with MFJ-1316.

Autotuner Interface Cables
MFJ-5114A	Most Alinco
MFJ-5114K	Most Kenwood
MFJ-5114I	Most Icom
MFJ-5114Y	Most Yaesu
MFJ-5114Y2	Yaesu FT-847 (MFJ-92X models only)
MFJ-5114Y3	Yaesu FT-1000MP/2000/9000
MFJ-5114Y4	Yaesu FT-2000 (through TX REQ input)

The MFJ-969 Antenna Tuner gives you MFJs superb AirCore Roller Inductor and full 6 meteres through 160 Meter coverage!
You get everything youve ever wanted including...300 Watts PEP SSB full featured antenna tuner, widest matching range, full size lighted Cross-Needle SWR/Wattmeter reads true peak forward power, QRM-Free PreTune, 8 Position antenna switch, built in 50 Ohm dummy load, heavy duty 4:1 balun -- all in a tough, attractive cabinet. MFJs famous 1 year No Matter What warranty.

The MFJ-969 Antenna Tuners AirCore Roller Inductor, gear driven turns counter and spinner knob gives you exact inductance control for absolute minimum SWR. MFJs exclusive AirCore Roller Inductor has an air core that cant burn up! You get ultra-high-Q, the lowest loss, highest efficiency and highest power handling of any roller inductor in ham radio.

MFJs exclusive Self-Resonance Killer Keeps potentially damaging self-resonances away from your frequency. Huge self-cleaning wiping contact gives you excellent low-resistance connection without contact arcing or burning.
Solid 1/4 inch brass shaft, self-align bearings -- smooth non-binding operation.

The MFJ-969 Antenna Tuner covers all frequencies from 160 Meters thru 6 Meters, including the "magic band" -- the widest matching range of any full featured antenna tuner. Match dipoles, verticals, inverted vees, random wires, beams, mobile whips, SWL receiving antennas -- nearly any antenna. You can use coax cable, random wire or balanced lines. Has heavy duty 4:1 balun.

MFJs new ActivePeak reading Circuit accurately reads true peak forward power -- an MFJ exclusive.

MFJs lighted Cross Needle SWR/Wattmeter reads SWR, true peak forwards and average reflected power simultaneously on 300 Wat or 30 Watt ranges.
Lamp has on/off switch and uses 12VDC or 110 VAC with MFJ-1312D ActivePeakReading Circuit can also use a 9 volt battery.

MFJs 8 positions let you select two coax fed antennas, random wire/balanced line or built-in dummy load for use through your MFJ-969 or direct to your rig.
MFJs QRM-Free-PreTune lets you pre-tune MFJ-969 off the air into a built in dummy load without causing QRM. Pre-tuning into a dummy load makes tuning your actual antenna quick and easy!

The MFJ-969 Antenna Tuner has a full size non-inductive 50 Ohm dummy load. Youll find it handy for tuning, testing, repairing rigs, setting power level, adjusting mic gain, etc.

The MFJ-969 has a new tough aluminum case has a scratch proof multi-colored lexan front panel. It measures a compact 3½H x 10½D x 9½W inches.

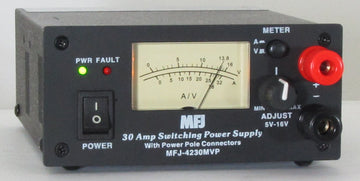

This is the world’s most compact switching power supply that also has a meter and adjustable voltage control.



Just 5" W x 2 ½" H x 6" D, it weighs only 3 lbs. -- it is the perfect pack-n-go power supply for field day, DXpeditions, camping, hiking or to pack for your next business trip or vacation to some far away place.

MFJ-4230MV gives you 25 Amps continuously or 30 Amps surge at 13.8 VDC. The voltage is front-panel adjustable from 4 to 16 Volts. MFJ-4230MV also has a selectable input voltage: choose from 120 or 240 VAC at 47 - 63 Hz.

A simple front-panel push-button switch lets you choose either Ampmeter or Voltmeter -- allows you to select Amps or Volts as you wish to read them.

MFJ-4230MV has an excellent 75% efficiency and extra low ripple and noise, < 100 mV. Awhisper-quiet fan cools by convection and forced air cooling.

Normal air-flow around the power supply is continuous and a heat sensor increases the fan speed when the temperature rises above 70 degrees celsius.

DC output is five way binding posts on the back of the MFJ-4230MV so you can power your dedicated HF, VHF or UHF transceiver with ease.

All MFJ switching power supplies are protected by MFJ’s famous NOMatterWhat™ one year limited warranty.

MFJ will repair or replace (at our option) your switching power supply no matter what for one complete year.

MFJ 1500 Watt Legal Limit IntelliTuner



Full 1500 watts SSB/CW…Digital & Analog SWR/WattMeter . . .
All features of MFJ IntelliTuners-- Ultra-fast, Safe Automatic Tuning . . . Wide Tuning Range (12-1600 Ohms from 1.8 to 30 MHz ) . . . Radio Interfaces . . . Built-in Antenna Switch for two coax/long wire . . . Automatic Bypass protects your amplifier . . . Field Upgradeable Software . . . Very Compact!

The MFJ-998 Full Legal Limit 1500 Watt Intellituner takes you to the final level in automatic antenna tuners. With a capability of 1500 watts SSB and CW, coupled with automatic tuning, your high-power station can now operate essentially hands-free even when frequency and band changes are made.

Fast Automatic Tuning

The MFJ-998 instantly matches impedances from 12-1600 ohms using MFJ`s exclusive IntelliTune, AdaptiveSearch and InstantRecall algorithms with over 20,000 VirtualAntenna Memories. When you key your transmitter, MFJ`s InstantRecall checks to see if that frequency has been used before. If so, tuning is instantaneous. If not, MFJ`s IntelliTune algorithm (based on MFJ`s efficient SWR Analyzer technology) measures the impedance, snaps the necessary components in place, and then fine-tunes the SWR. If the antenna impedance is outside the tuner`s measurement range, MFJ`s Adaptive Search algorithm measures the frequency and determines only relevant component values -- which are then searched for fast tuning.

Safe Automatic Tuning and Amplifier Protection

The MFJ-998 includes MFJ’s Amplifier Bypass Control -- an MFJ exclusive feature! When used with a transceiver interface cable, tuning is safe and "stupidproof"! When a tuning cycle is initiated, the MFJ-998 first bypasses any in-line amplifier. Next, the MFJ-998 initiates a low-power CW tuning carrier from your transceiver. When tuning is complete, the MFJ-998 reverts your transceiver to its prior power and mode, and re-enables the amplifier. This entire cycle typically takes less than a second! Finally, if the MFJ-998 cannot find a match better than a preset amplifier SWR trip-point, the amplifier stays bypassed to provide automatic SWR protection for your amplifier -- another MFJ exclusive!

Analog SWR/Wattmeter

A large analog Cross-Needle SWR/Watt-meter displays selectable 300/60 watt or 3000/600 watt forward/reflected full-scale ranges. You can even select automatic power ranging -- the best power range is automatically selected for you.

Digital LCD SWR/Wattmeter

A two-line, 16-character backlit LCD meter displays SWR, forward/reflected power, frequency, antenna selected, an auto-ranging bargraph power indication,
and much more. You can even read the final matching inductor and capacitor values should you want to build your own fixed matching network. Simple menus
determine displayed information - no complex button combinations to remember!

MFJ VirtualAntenna Memory

MFJ new VirtualAntenna Memory system gives you 4 antenna memory banks for
each of 2 switchable antenna connectors. Select up to 4 antennas on each antenna connector. Each antenna has 2500 memories, 20,000 total. Has two coax connectors and a binding post for end-fed long wire antennas.

Download and Upgrade Remotely

Field upgradeable firmware via the serial port -- download and upgrade your MFJ-998 as new features are introduced!

Plus Much More!

Built-in radio interface provides control of most amateur transceivers.

Automatic bypassing when excessive tuning power or power in excess of 1500 watts is applied.

Use balanced line antennas with external MFJ-912, 1.5 kW 4:1 balun.

MFJ-998 is the smallest full legal-limit auto-tuner in the world! 13Wx4Hx15D
inches fits easily into your ham station. Weighs just 8 pounds -- great portability! Requires 12-15VDC at 1.4 amps maximum or 110 VAC with MFJ-1316.

Pre-wired Rig Interface
Cables for MFJ-929/998

These cables work with the following MFJ Automatic tuners: MFJ-929, MFJ-928, MFJ-925, and the MFJ-998.

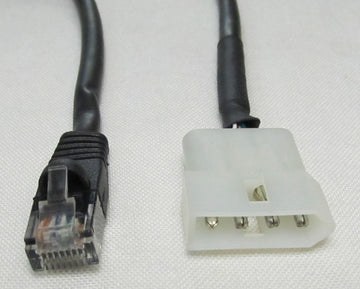

MFJ-5114K Prewired Rig Interface cable for Kenwood and compatibles.
MFJ-5114I. Prewired Rig Interface cable for Icom and compatibles.
MFJ-5114Y. Prewired Rig Interface cable for Yaesu and compatibles.
MFJ-5114Y3. Prewired MFJ-929 to FT-1000MP, FT-9000 Yaesu rigs.
MFJ-5114Y4. Prewired MFJ-929 to FT2000 Yaesu rigs.

530KHz-230MHz plus 415-470MHz HF/VHF/UHF SWR Analyzer

Covers 530 KHz-230 MHz and 415-470 MHz . . . SWR . . . Complex RFImpedance: Resistance(R)
and Reactance(X) or Magnitude(Z) and Phase(degrees) . . . Coax cable loss(dB) . . . Coax cable
length and Distance to fault . . . Return Loss . . . Reflection Coefficient . . . Inductance . . . Capacit-
ance . . . Battery Voltage. LCD digital readout . . . frequency counter . . . side-by-side meters . . . Ni-
MH/Ni-Cad charger circuit . . . battery saver . . . low battery warning . . . smooth reduction drive . . .

MFJ-269C covers 530KHz to 230 MHz and 415 to 470 MHz -- an MFJ-269C exclusive! Includes all the features of MFJ-259C, the world’s most popular SWR Analyzer plus much more!

Large easy-to-read two line LCD display and side-by-side meters clearly display your
information. Built-in Ni-Cad/Ni-MH charger circuit, battery saver, low battery warning, smooth reduction drive tuning.Use as signal source for testing/alignment.

Built-in CoaxCalculator -- calculates coax line length in feet given coax length in electrical degrees and vice versa for any frequency and any velocity factor (great for building matching sections and phasing lines) -- an MFJ-269C exclusive!

New 12-bit A/D converter gives much better accuracy and resolution than common 8-bit A/D converters -- an MFJ-269C exclusive!

Super easy to use! Just set the bandswitch and tune the dial -- just like your transceiver.

530 KHz to 230 MHz Range Features

MFJ-269C gives you a complete picture of your antenna. Read antenna SWR and Complex Imped-ance 530 KHz to 230 MHz. Built-in frequency counter.

Lower band is retuneable to cover 470-940 KHz for maritime and 600 Meters.

Read Complex Impedance as series equivalent resistance and reactance (Rs+jXs) or as magnitude (Z) and phase (degrees).

Also reads parallel equivalent resistance and reactance (Rp+jXp) --MFJ-269C exclusive!

Determine velocity factor, coax loss in dB, length of coax and distance to short/open in feet.

Read SWR, return loss and reflection coefficient at any frequency simultaneously at a single glance. Also reads match efficiency.

Also read inductance in uH and capacitance in pF at RF frequencies.

Measure SWR and loss of coax with any characteristic impedance, 10 to over 600 Ohms, including 50, 51, 52, 53, 73, 75, 93,95,300,450 Ohms -- MFJ-269C exclusive!

415 to 470 MHz Range features

Just plug in your UHF antenna coax, set the frequency and read SWR, return loss and reflection coefficient simultaneously. You can read coax cable loss in dB and match efficiency.

You can adjust UHF dipoles, verticals, yagis, quads and other antennas and determine their SWR, resonant frequency and bandwidth.

You can test and tune stubs and coax lines. You can manually determine velocity factor and impedances of transmission lines.

Adjust and test RF matching networks and RF amplifiers without applying power.

Has easy-to-read LCD logarithmic SWR bargraph and SWR meter for quick tuning.

Take it anywhere

Fully portable, take it anywhere -- on remote sites, up towers, on DX-peditions.

Has built-in “N-type” connector.

Includes Free N-to-SO-239 adaptor.

Use 10 AA Ni-MH or Ni-Cad or alkaline batteries (not included -- alkalines cannot be charged internally) or 110-240 VAC with optional MFJ-1312D.

Compact 4W x 2D x 6 3/4H inches.

Maritime and 600 Meter Coverage
